| Özellik / Features | 10 Ton | 25 Ton | 35 Ton | 40 Ton | 60 Ton | 80 Ton | 120 Ton | 160 Ton | 200 Ton | 250 Ton |
|---|---|---|---|---|---|---|---|---|---|---|
| Strok Ayarı (mm) Stroke Adjustment (mm) |
0-50 | 0-60 | 0-70 | 0-90 | 0-100 | 10-110 | 20-120 | 20-140 | 20-160 | 20-170 |
| Makine Devri (D/DK) Speed (D/DK) |
130 | 120 | 115 | 95 | 58 | 55 | 48 | 45 | 45 | 42 |
| Tabla Boyut (mm) Table Area (mm) |
280x380 | 350x550 | 400x600 | 470x700 | 550x750 | 620x800 | 650x950 | 800x1100 | 870x1150 | 960x1200 |
| Tabla Delik Çapı (mm) Table Hole Diameter (mm) |
80 | 80-100 | 120-140 | 150-170 | 160-180 | 180-200 | 200-220 | 220-240 | 240-260 | 240-260 |
| Mapa Çapı (mm) Hole Diameter (mm) |
25 | 28 | 35 | 35 | 45 | 50 | 55 | 55 | 55 | 60 |
| Motor Gücü (HP) Motor Power (HP) |
1.5 | 3 | 4 | 5.5 | 7.5 | 10 | 15 | 20 | 25 | 30 |
| Ağırlık (KG) Weight (KG) |
800 | 1.200 | 1.550 | 2.050 | 2.875 | 3.800 | 5.300 | 8.800 | 12.000 | 14.500 |

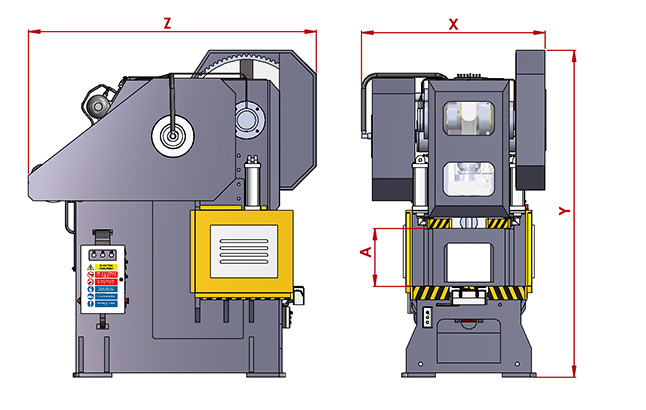

| Ara Mesafe A (mm) Intermediate Distance A (mm) |
240 | 260 | 330 | 350 | 380 | 410 | 470 | 550 | 600 | 600 |
| Ebatlar X (mm) Sizes X (mm) |
650 | 1300 | 1400 | 1450 | 1550 | 1600 | 1650 | 1700 | 1850 | 1900 |
| Ebatlar Y (mm) Sizes Y (mm) |
1500 | 1900 | 2100 | 2260 | 2270 | 2400 | 2550 | 2900 | 3100 | 3350 |
| Ebatlar Z (mm) Sizes Z (mm) |
1100 | 1350 | 1450 | 1500 | 1600 | 1800 | 2000 | 2400 | 2550 | 2700 |
